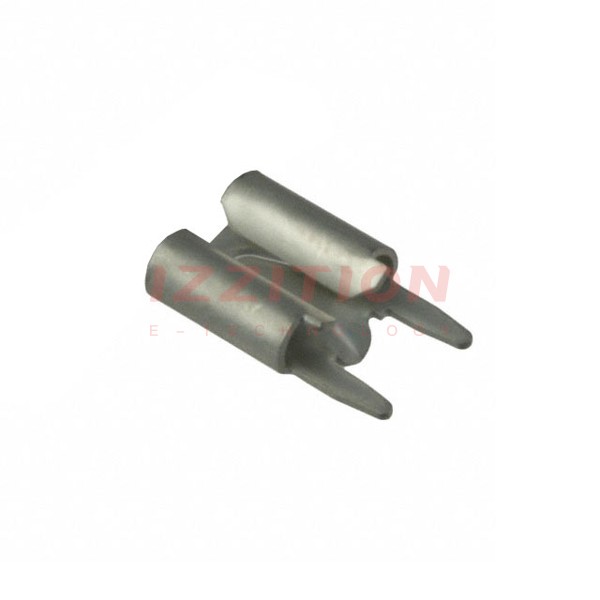

| Part Number | 63968-1 | 63969-1 | 63961-1 | 63963-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Stacked | Angled - 90°, Flag |
| Gender | Female | Female | Female and Male | Female |
| Tab Width | 0.205" (5.21mm), 0.250" (6.35mm) | 0.205" (5.21mm), 0.250" (6.35mm) | 0.110" (2.79mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) / 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.330" (8.38mm) | 0.330" (8.38mm) | 0.250" (6.35mm) | 0.240" (6.10mm) |
| Length - Overall | 0.480" (12.19mm) | 0.480" (12.19mm) | 0.600" (15.24mm) | - |
| Termination | Solder | Solder | Crimp | Crimp |
| Wire Gauge | - | - | 18-22 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Steel |
| Contact Finish | Tin | Tin | Tin | Nickel |
