Please send RFQ , we will respond immediately.

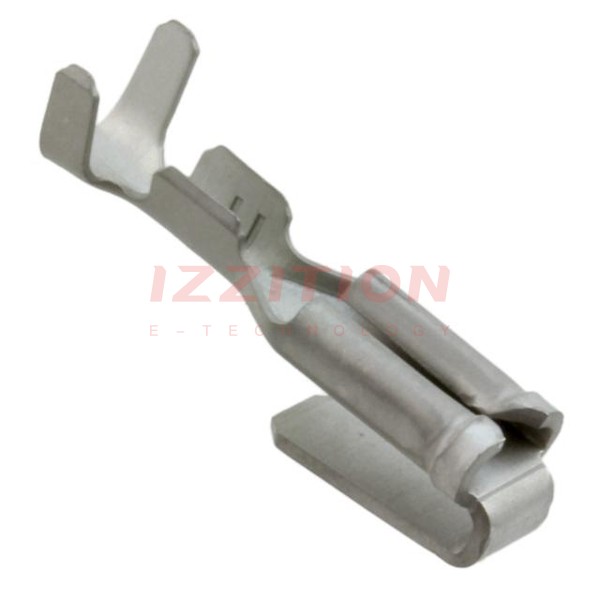

| Part Number | 63961-1 | 63969-1 | 63968-1 | 63971-1 | 63963-1 | 63761-1 | 63901-1 | 63931-1 | 63941-1 | 63951-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active |
| Terminal Type | Stacked | Standard | Standard | Angled - 90° | Angled - 90°, Flag | Standard | Angled - 90°, Flag | Standard | Angled - 90°, Flag | Standard |
| Gender | Female and Male | Female | Female | Male | Female | Male | Female | Female | Female | Male |
| Tab Width | 0.110" (2.79mm) | 0.205" (5.21mm), 0.250" (6.35mm) | 0.205" (5.21mm), 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) / 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.330" (8.38mm) | 0.330" (8.38mm) | 0.312" (7.92mm) | 0.240" (6.10mm) | 0.312" (7.92mm) | - | 0.250" (6.35mm) | 0.240" (6.10mm) | 0.312" (7.92mm) |
| Length - Overall | 0.600" (15.24mm) | 0.480" (12.19mm) | 0.480" (12.19mm) | - | - | 0.775" (19.69mm) | - | - | - | - |
| Termination | Crimp | Solder | Solder | Screw, Rivet, Stud | Crimp | Crimp | Crimp | Crimp | Crimp | Solder |
| Wire Gauge | 18-22 AWG | - | - | - | 14-18 AWG | 14-18 AWG | 14-18 AWG | 18-22 AWG | 1200-2350 CMA | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Through Hole | Through Hole | Board, Chassis | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Through Hole, Right Angle |
| Features | - | - | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Steel | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Nickel | - | Tin | Tin | Tin | Tin |
