Please send RFQ , we will respond immediately.

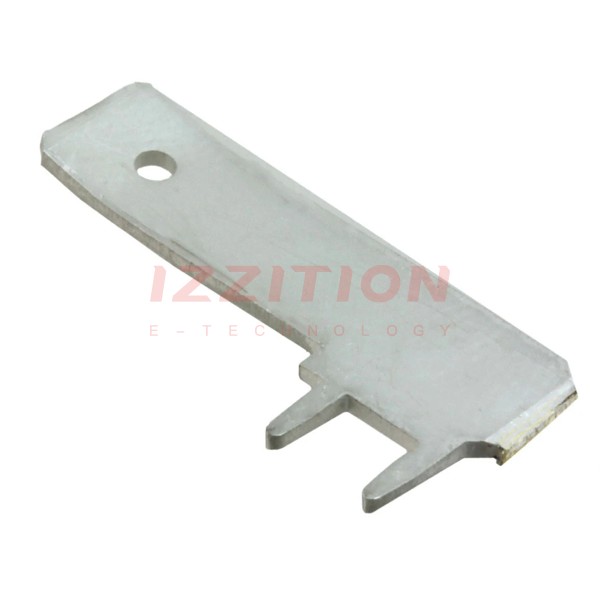

| Part Number | 63952-1 | 63954-1 | 63982-1 | 63959-1 | 63953-1 | 63652-1 | 63932-1 | 63942-1 | 63950-1 | 63951-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Angled - 90°, Flag | Standard | Angled - 90°, Flag | Standard | Standard |
| Gender | Male | Female | Male | Female | Male | Male | Male | Female | Male | Male |
| Tab Width | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.110" (2.79mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.016" (0.41mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | - | 0.150" (3.81mm) | 0.330" (8.38mm) | 0.240" (6.10mm) | 0.312" (7.92mm) | 0.312" (7.92mm) |
| Length - Overall | - | 0.635" (16.13mm) | 0.490" (12.45mm) | 0.585" (14.86mm) | - | - | 0.490" (12.45mm) | - | 1.207" (30.66mm) | - |
| Termination | Solder | Crimp | Solder | Crimp | Weld | Crimp | Crimp | Crimp | Solder | Solder |
| Wire Gauge | - | 18-22 AWG | - | 16-20 AWG | - | 14-18 AWG | 18-22 AWG | 500-1200 CMA | - | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole, Right Angle | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Board, Chassis | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Through Hole | Through Hole, Right Angle |
| Features | - | - | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Steel | Steel | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Nickel | - | Tin | Tin | Tin | Tin | Tin |
