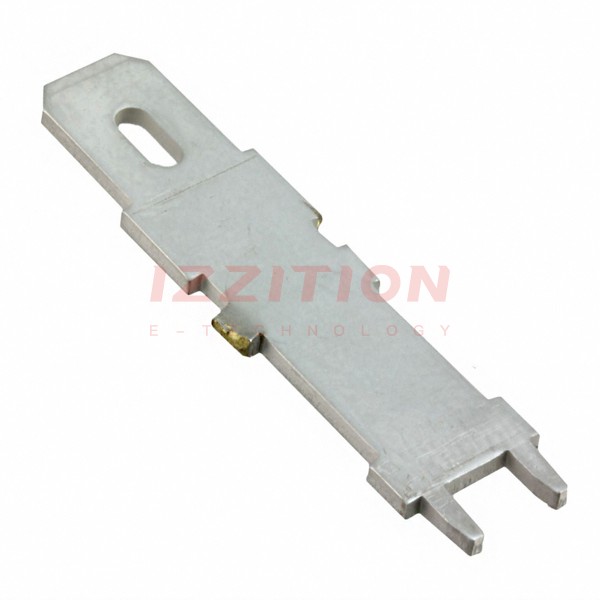

| Part Number | 63950-1 | 63951-1 | 63954-1 | 63990-1 | 63952-1 | 63959-1 | 63953-1 | 63650-1 | 63850-1 | 63900-1 | 63940-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Angled - 90°, Flag | Standard | Standard | Standard | Standard | Standard | Standard | Angled - 90°, Flag |
| Gender | Male | Male | Female | Female | Male | Female | Male | Male | Female | Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.015" (0.38mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.016" (0.41mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.250" (6.35mm) | - | - | 0.250" (6.35mm) | - | 0.312" (7.92mm) | 0.250" (6.35mm) | 0.452" (11.48mm) | 0.240" (6.10mm) |
| Length - Overall | 1.207" (30.66mm) | - | 0.635" (16.13mm) | - | - | 0.585" (14.86mm) | - | 0.532" (13.51mm) | 0.590" (14.99mm) | 0.622" (15.80mm) | - |
| Termination | Solder | Solder | Crimp | Crimp | Solder | Crimp | Weld | Solder | Crimp | Solder | Crimp |
| Wire Gauge | - | - | 18-22 AWG | 16-22 AWG | - | 16-20 AWG | - | - | 16-20 AWG | - | 2000-4050 CMA |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Through Hole, Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Through Hole, Right Angle | Free Hanging (In-Line) | Board, Chassis | Through Hole | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Steel | Steel | Brass | Steel | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Nickel | - | Tin | Nickel | Tin | Tin |
