Please send RFQ , we will respond immediately.

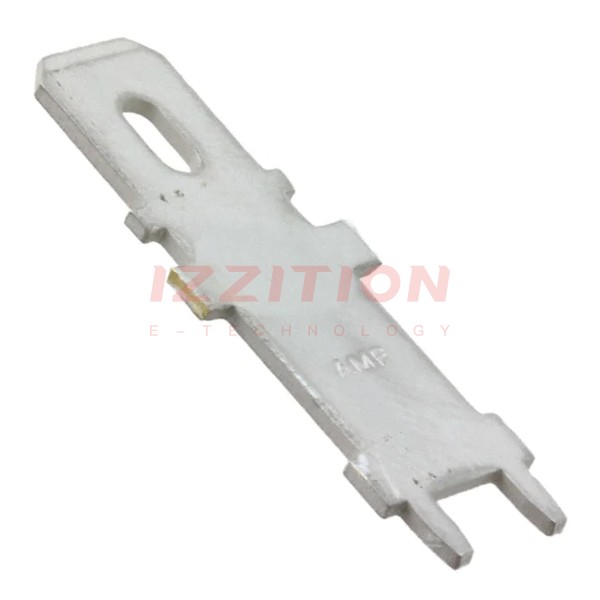

| Part Number | 63949-1 | 63969-1 | 63959-1 | 63849-1 | 63919-1 | 63940-1 | 63941-1 | 63942-1 | 63944-1 | 63946-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Angled - 90°, Flag | Angled - 90°, Flag | Angled - 90°, Flag | Angled - 90°, Flag | Standard |
| Gender | Male | Female | Female | Male | Male | Female | Female | Female | Female | Male |
| Tab Width | 0.250" (6.35mm) | 0.205" (5.21mm), 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.312" (7.92mm) | 0.330" (8.38mm) | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.250" (6.35mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.305" (7.75mm) | 0.250" (6.35mm) |
| Length - Overall | 1.062" (26.97mm) | 0.480" (12.19mm) | 0.585" (14.86mm) | 0.552" (14.02mm) | - | - | - | - | - | 0.605" (15.37mm) |
| Termination | Solder | Solder | Crimp | Solder | Crimp | Crimp | Crimp | Crimp | Crimp | Screw, Rivet, Stud |
| Wire Gauge | - | - | 16-20 AWG | - | 14-18 AWG | 2000-4050 CMA | 1200-2350 CMA | 500-1200 CMA | 12-16 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Through Hole | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Board, Chassis |
| Features | - | - | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Steel | Brass | Brass | Brass | Brass | Brass | Phosphor Bronze | Brass |
| Contact Finish | Tin | Tin | Nickel | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
