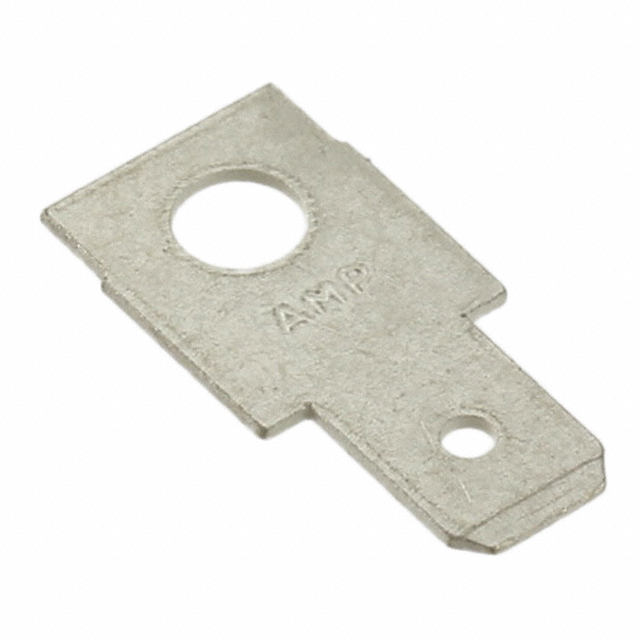

| Part Number | 63946-1 | 63986-1 | 63949-1 | 63646-1 | 63940-1 | 63941-1 | 63942-1 | 63944-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Stacked | Angled - 90°, Flag | Angled - 90°, Flag | Angled - 90°, Flag | Angled - 90°, Flag |
| Gender | Male | Male | Male | Female and Male | Female | Female | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) / 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.225" (5.72mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.305" (7.75mm) |
| Length - Overall | 0.605" (15.37mm) | 0.547" (13.89mm) | 1.062" (26.97mm) | 0.615" (15.62mm) | - | - | - | - |
| Termination | Screw, Rivet, Stud | Solder | Solder | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | - | - | - | 16-20 AWG | 2000-4050 CMA | 1200-2350 CMA | 500-1200 CMA | 12-16 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Board, Chassis | Through Hole | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin | - | Tin | Tin | Tin | Tin |
