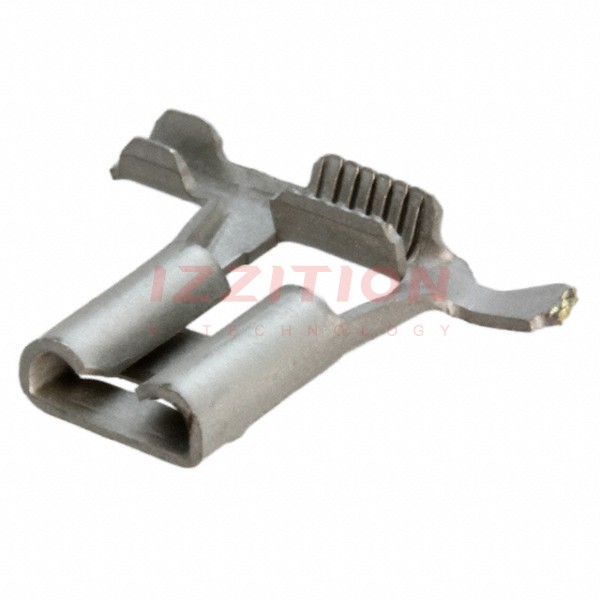

| Part Number | 63942-1 | 63982-1 | 63952-1 | 63949-1 | 63944-1 | 63946-1 | 63932-1 | 63940-1 | 63941-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Terminal Type | Angled - 90°, Flag | Standard | Standard | Standard | Angled - 90°, Flag | Standard | Standard | Angled - 90°, Flag | Angled - 90°, Flag |
| Gender | Female | Male | Male | Male | Female | Male | Male | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.110" (2.79mm) | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | 0.240" (6.10mm) | 0.250" (6.35mm) | - | 0.312" (7.92mm) | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.330" (8.38mm) | 0.240" (6.10mm) | 0.240" (6.10mm) |
| Length - Overall | - | 0.490" (12.45mm) | - | 1.062" (26.97mm) | - | 0.605" (15.37mm) | 0.490" (12.45mm) | - | - |
| Termination | Crimp | Solder | Solder | Solder | Crimp | Screw, Rivet, Stud | Crimp | Crimp | Crimp |
| Wire Gauge | 500-1200 CMA | - | - | - | 12-16 AWG | - | 18-22 AWG | 2000-4050 CMA | 1200-2350 CMA |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), Right Angle | Through Hole | Through Hole, Right Angle | Through Hole | Free Hanging (In-Line), Right Angle | Board, Chassis | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Phosphor Bronze | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
