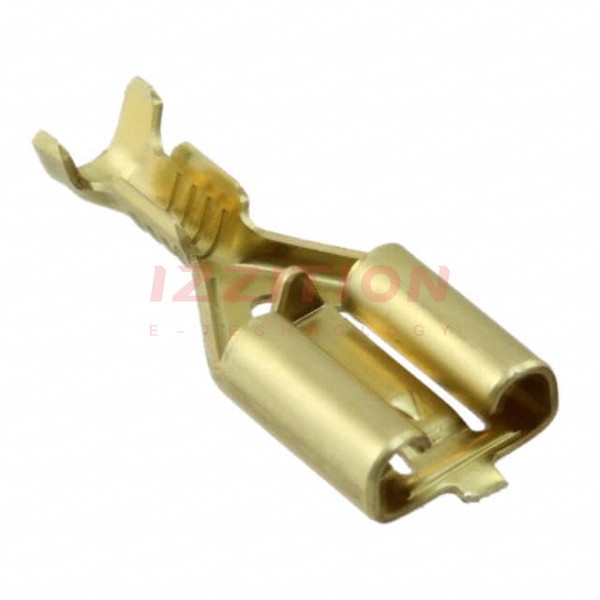

| Part Number | 63933-1 | 63993-1 | 63933-2 | 63963-1 | 63953-1 | 63833-1 | 63931-1 | 63932-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Angled - 90°, Flag | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female | Male | Female | Female | Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.016" (0.41mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.293" (7.44mm) | 0.305" (7.75mm) | 0.293" (7.44mm) | 0.240" (6.10mm) | - | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.330" (8.38mm) |
| Length - Overall | 0.771" (19.58mm) | - | 0.771" (19.58mm) | - | - | 0.590" (14.99mm) | - | 0.490" (12.45mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Weld | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 14-18 AWG | 18-22 AWG | 14-18 AWG | - | 14-18 AWG | 18-22 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Board, Chassis | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Steel | Steel | Brass | Brass | Brass |
| Contact Finish | - | Tin | Tin | Nickel | - | - | Tin | Tin |
