Please send RFQ , we will respond immediately.

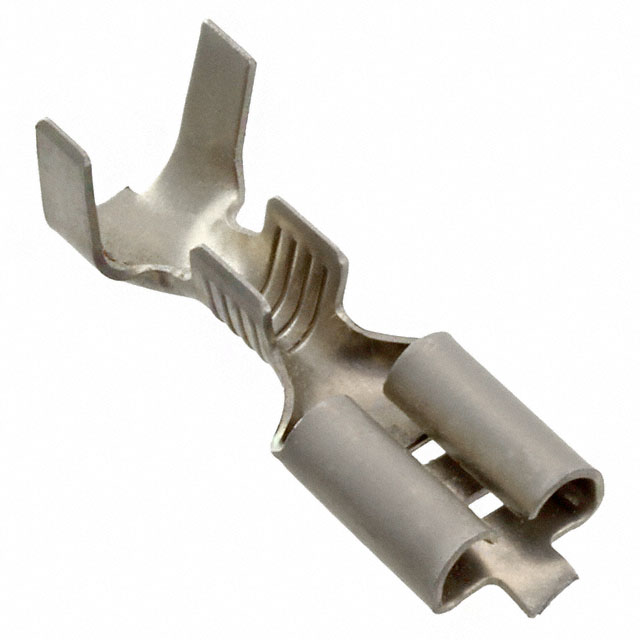

| Part Number | 63892-1 | 63896-1 | 63812-1 | 63862-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.305" (7.75mm) | - | 0.312" (7.92mm) |
| Length - Overall | 0.822" (20.88mm) | 0.750" (19.05mm) | 0.886" (22.50mm) | 0.552" (14.02mm) |
| Termination | Crimp | Crimp | Crimp | Solder |
| Wire Gauge | 12-16 AWG | 12-16 AWG | 14-18 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Steel | Brass | Brass | Brass |
| Contact Finish | Nickel | - | Tin | Tin |
