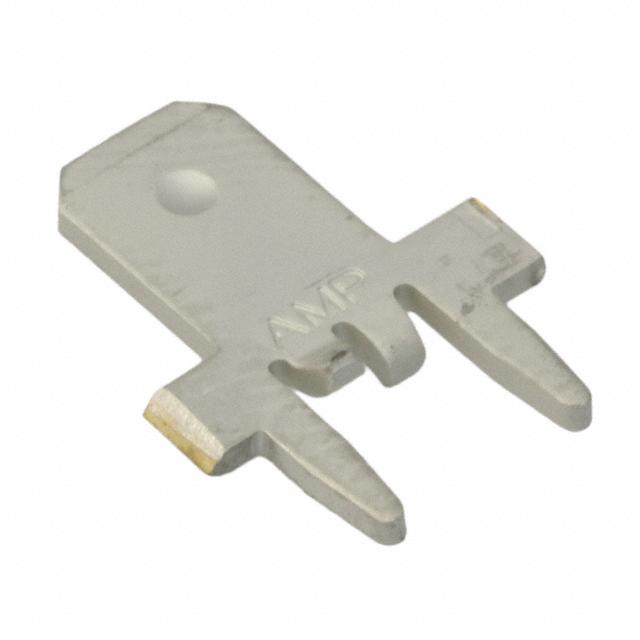

| Part Number | 63860-1 | 63862-1 | 63560-1 | 63800-1 | 63820-1 | 63850-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Gender | Male | Male | Female | Female | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.190" (4.83mm) | 0.305" (7.75mm) | 0.380" (9.65mm) | 0.250" (6.35mm) |
| Length - Overall | 0.490" (12.45mm) | 0.552" (14.02mm) | 0.415" (10.54mm) | - | 0.900" (22.86mm) | 0.590" (14.99mm) |
| Termination | Solder | Solder | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | - | - | 16-20 AWG | 12-16 AWG | 10-14 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Steel |
| Contact Finish | Tin | Tin | Tin | Tin | Silver | Nickel |
