Please send RFQ , we will respond immediately.

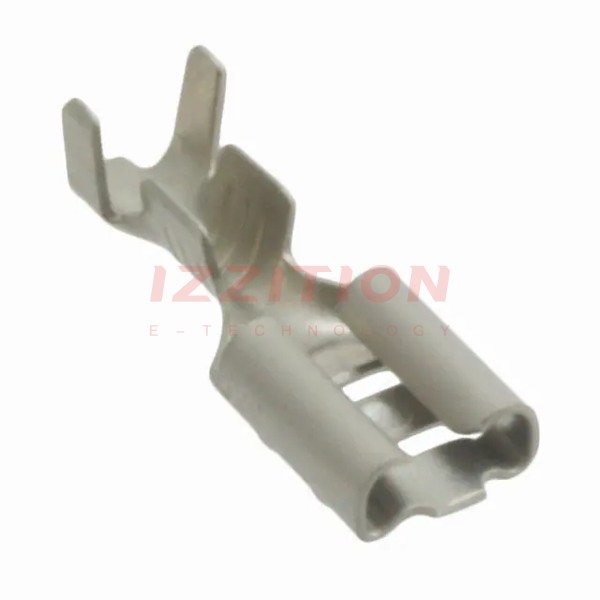

| Part Number | 63850-1 | 63860-1 | 63950-1 | 63854-1 | 63650-1 | 63800-1 | 63820-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Male | Male | Female | Male | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.312" (7.92mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.293" (7.44mm) | 0.312" (7.92mm) | 0.305" (7.75mm) | 0.380" (9.65mm) |
| Length - Overall | 0.590" (14.99mm) | 0.490" (12.45mm) | 1.207" (30.66mm) | 0.771" (19.58mm) | 0.532" (13.51mm) | - | 0.900" (22.86mm) |
| Termination | Crimp | Solder | Solder | Crimp | Solder | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | - | - | 14-18 AWG | - | 12-16 AWG | 10-14 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Through Hole | Through Hole | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - |
| Contact Material | Steel | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Nickel | Tin | Tin | - | Tin | Tin | Silver |
