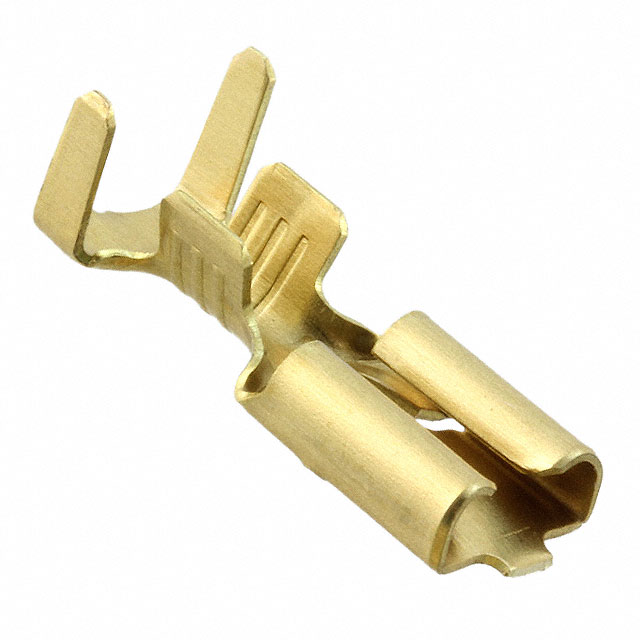

| Part Number | 63833-1 | 63933-1 | 63837-1 | 63839-1 | 63873-1 | 63823-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Stacked | Standard |
| Gender | Female | Female | Female | Male | Female and Male | Male |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | 0.250" (6.35mm) | 0.293" (7.44mm) | 0.140" (3.56mm) | - | 0.225" (5.72mm) | 0.250" (6.35mm) |
| Length - Overall | 0.590" (14.99mm) | 0.771" (19.58mm) | 0.327" (8.31mm) | 0.502" (12.75mm) | 0.615" (15.62mm) | 0.490" (12.45mm) |
| Termination | Crimp | Crimp | Crimp | Solder | Crimp | Solder |
| Wire Gauge | 14-18 AWG | 18-22 AWG | 22-26 AWG | - | 18-22 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Through Hole |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | - | - | Tin | Tin | Tin | Tin |
