Please send RFQ , we will respond immediately.

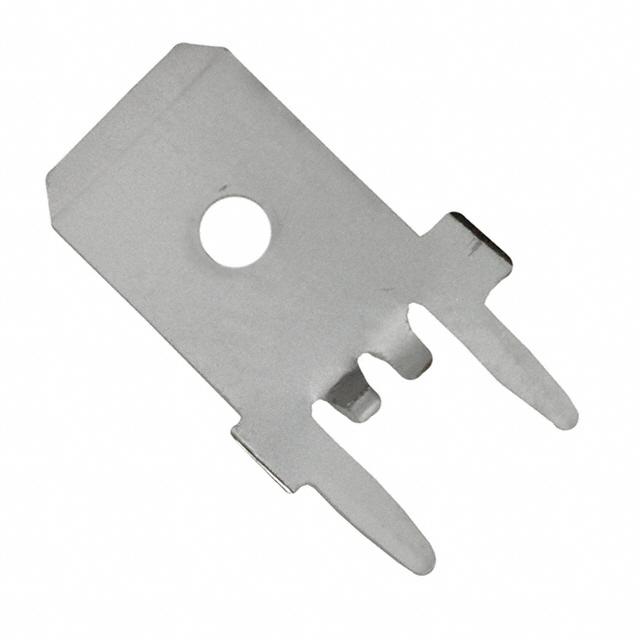

| Part Number | 63824-1 | 63854-1 | 63824-3 | 63820-1 | 63823-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard |
| Gender | Male | Female | Male | Female | Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.312" (7.92mm) | 0.293" (7.44mm) | 0.312" (7.92mm) | 0.380" (9.65mm) | 0.250" (6.35mm) |
| Length - Overall | 0.552" (14.02mm) | 0.771" (19.58mm) | 0.552" (14.02mm) | 0.900" (22.86mm) | 0.490" (12.45mm) |
| Termination | Solder | Crimp | Solder | Crimp | Solder |
| Wire Gauge | - | 14-18 AWG | - | 10-14 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Through Hole |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | - | Tin | Silver | Tin |
