Please send RFQ , we will respond immediately.

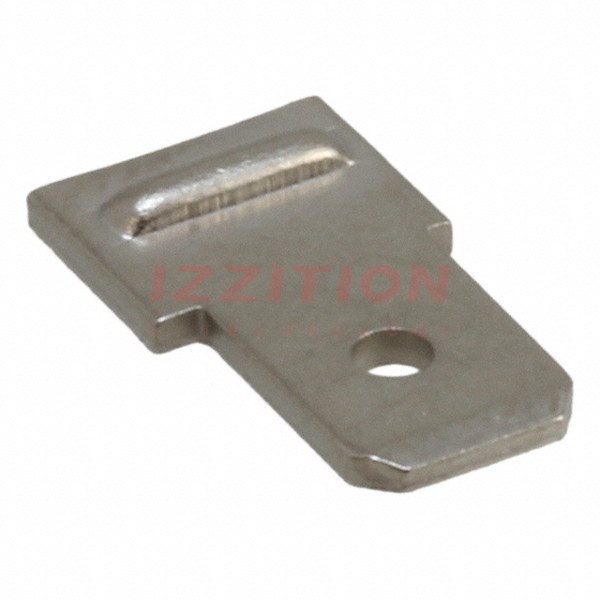

| Part Number | 63771-1 | 63971-1 | 63751-1 | 63761-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete |
| Terminal Type | Standard | Angled - 90° | Standard | Standard |
| Gender | Male | Male | Female | Male |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.039" (0.99mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.250" (6.35mm) | 0.312" (7.92mm) |
| Length - Overall | 0.450" (11.43mm) | - | 0.590" (14.99mm) | 0.775" (19.69mm) |
| Termination | Screw, Rivet, Stud | Screw, Rivet, Stud | Crimp | Crimp |
| Wire Gauge | - | - | 16-20 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Board, Chassis | Board, Chassis | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Steel | Brass | Brass | Brass |
| Contact Finish | Nickel | Tin | Tin | - |
