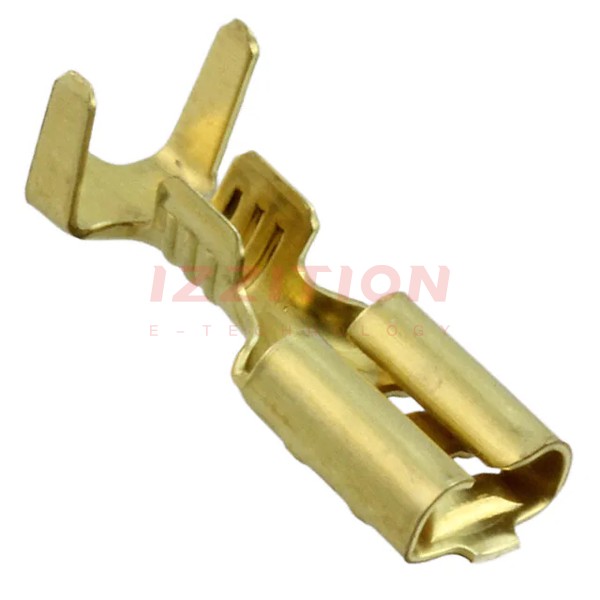

| Part Number | 63769-1 | 63969-1 | 63761-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete |
| Terminal Type | Standard | Standard | Standard |
| Gender | Female | Female | Male |
| Tab Width | 0.187" (4.75mm) | 0.205" (5.21mm), 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.330" (8.38mm) | 0.312" (7.92mm) |
| Length - Overall | 0.590" (14.99mm) | 0.480" (12.19mm) | 0.775" (19.69mm) |
| Termination | Crimp | Solder | Crimp |
| Wire Gauge | 16-18 AWG | - | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | - | Tin | - |
