Please send RFQ , we will respond immediately.

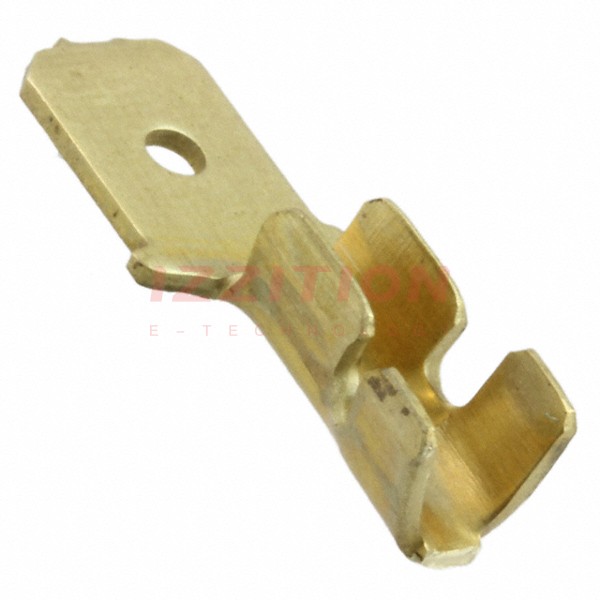

| Part Number | 63761-1 | 63769-1 | 63771-1 | 63961-1 | 63751-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Stacked | Standard |
| Gender | Male | Female | Male | Female and Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.110" (2.79mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) / 0.020" (0.51mm) | 0.039" (0.99mm) |
| Tab Length | 0.312" (7.92mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | 0.775" (19.69mm) | 0.590" (14.99mm) | 0.450" (11.43mm) | 0.600" (15.24mm) | 0.590" (14.99mm) |
| Termination | Crimp | Crimp | Screw, Rivet, Stud | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 16-18 AWG | - | 18-22 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Board, Chassis | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Steel | Brass | Brass |
| Contact Finish | - | - | Nickel | Tin | Tin |
