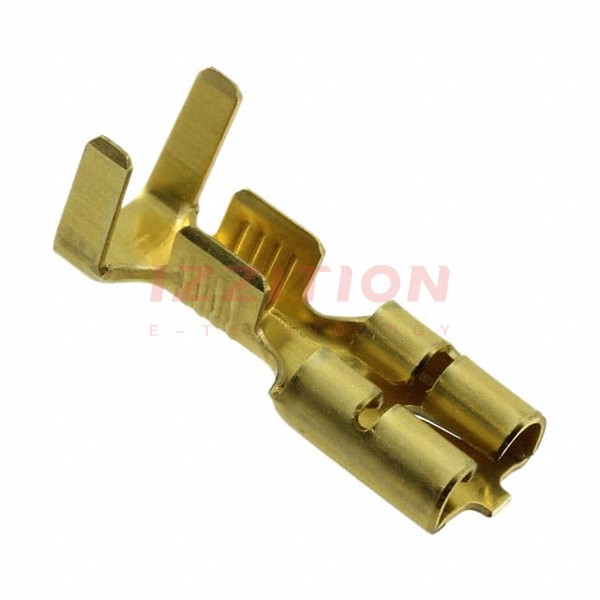

| Part Number | 63757-1 | 63757-2 | 63751-1 | 63755-1 | 63756-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Male | Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.039" (0.99mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.452" (11.48mm) | 0.417" (10.59mm) |
| Length - Overall | - | - | 0.590" (14.99mm) | 0.622" (15.80mm) | 0.622" (15.80mm) |
| Termination | Crimp | Crimp | Crimp | Solder | Solder |
| Wire Gauge | 12-16 AWG | 12-16 AWG | 16-20 AWG | - | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Through Hole |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Steel | Brass | Brass | Brass |
| Contact Finish | - | Nickel | Tin | Tin | Tin |
