Please send RFQ , we will respond immediately.

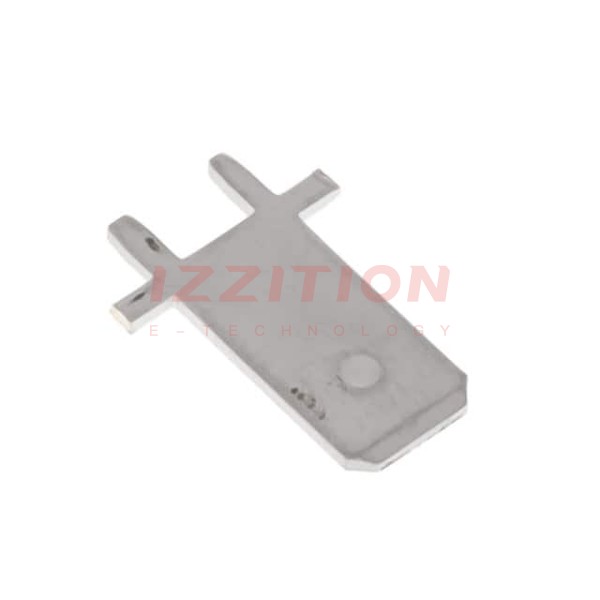

| Part Number | 63755-1 | 63756-1 | 63757-1 | 63785-1 | 63655-1 | 63705-1 | 63751-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Gender | Male | Male | Female | Female | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.125" (3.18mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.039" (0.99mm) |
| Tab Length | 0.452" (11.48mm) | 0.417" (10.59mm) | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | 0.622" (15.80mm) | 0.622" (15.80mm) | - | 0.475" (12.07mm) | 0.755" (19.18mm) | - | 0.590" (14.99mm) |
| Termination | Solder | Solder | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | - | - | 12-16 AWG | 16-20 AWG | 14-18 AWG | 18-22 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | - | - | Tin | - | Tin |
