Please send RFQ , we will respond immediately.

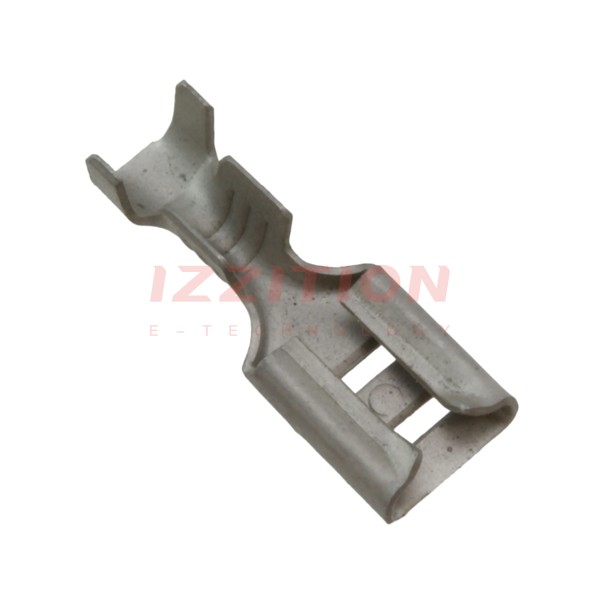

| Part Number | 63751-1 | 63951-1 | 63756-1 | 63757-1 | 63755-1 | 63771-1 | 63761-1 | 63651-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Angled - 90°, Flag |
| Gender | Female | Male | Male | Female | Male | Male | Male | Female |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.039" (0.99mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.417" (10.59mm) | 0.305" (7.75mm) | 0.452" (11.48mm) | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.305" (7.75mm) |
| Length - Overall | 0.590" (14.99mm) | - | 0.622" (15.80mm) | - | 0.622" (15.80mm) | 0.450" (11.43mm) | 0.775" (19.69mm) | - |
| Termination | Crimp | Solder | Solder | Crimp | Solder | Screw, Rivet, Stud | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | - | - | 12-16 AWG | - | - | 14-18 AWG | 12-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Through Hole, Right Angle | Through Hole | Free Hanging (In-Line) | Through Hole | Board, Chassis | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Steel | Brass | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin | - | Tin | Nickel | - | Tin |
