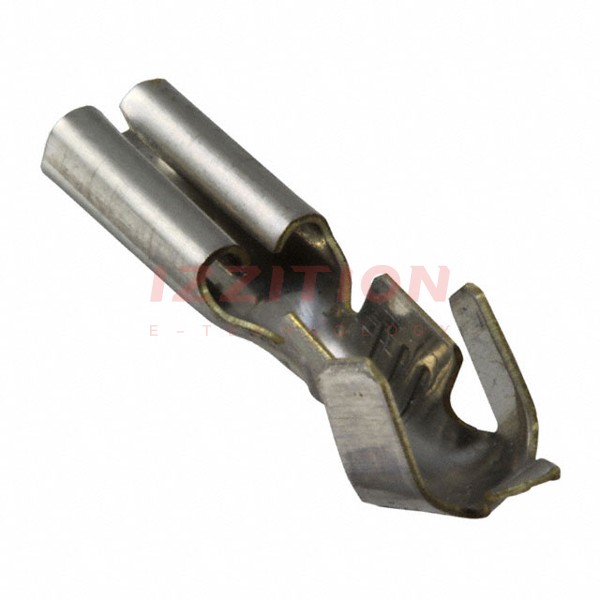

| Part Number | 63703-1 | 63705-1 | 63603-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard |
| Gender | Female | Female | Male |
| Tab Width | 0.110" (2.79mm) | 0.125" (3.18mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | 0.250" (6.35mm) | 0.250" (6.35mm) | - |
| Length - Overall | 0.635" (16.13mm) | - | 0.487" (12.37mm) |
| Termination | Crimp | Crimp | Solder |
| Wire Gauge | 16-20 AWG | 18-22 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | - | Tin |
