Please send RFQ , we will respond immediately.

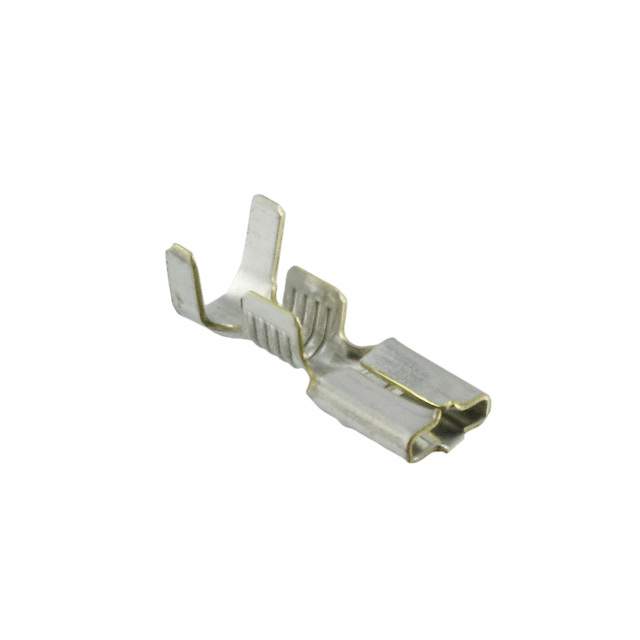

| Part Number | 63697-1 | 63497-1 | 63647-1 | 63677-1 | 63693-1 | 63696-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Angled - 90°, Flag | Standard | Standard | Angled - 90°, Flag |
| Gender | Female | Male | Female | Female | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.060" (1.52mm) | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.455" (11.56mm) | - | 0.380" (9.65mm) | 0.305" (7.75mm) | 0.250" (6.35mm) |
| Length - Overall | 0.640" (16.26mm) | 0.740" (18.80mm) | - | 0.900" (22.86mm) | - | - |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 19-23 AWG | 14-18 AWG | 12-16 AWG | 18-22 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Steel |
| Contact Finish | Tin | Tin | - | Tin | - | Nickel |
