Please send RFQ , we will respond immediately.

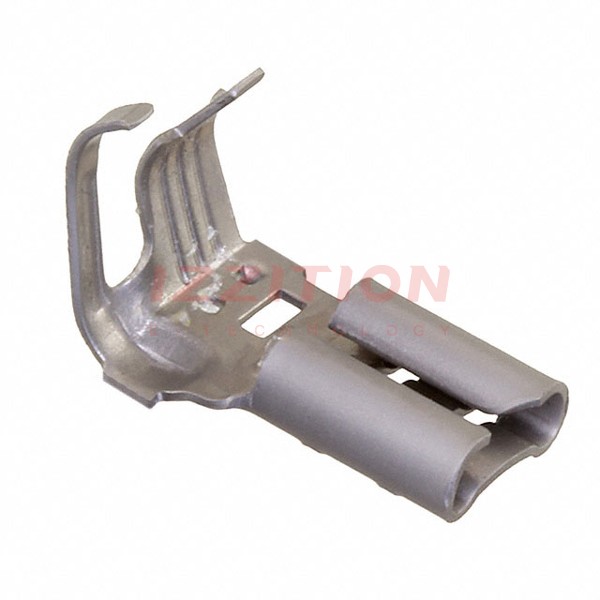

| Part Number | 63696-1 | 63896-1 | 63697-1 | 63196-1 | 63596-1 | 63646-1 | 63693-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Angled - 90°, Flag | Standard | Standard | Standard | Standard | Stacked | Standard |
| Gender | Female | Female | Female | Female | Female | Female and Male | Female |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) / 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.270" (6.86mm) | 0.250" (6.35mm) | 0.225" (5.72mm) | 0.305" (7.75mm) |
| Length - Overall | - | 0.750" (19.05mm) | 0.640" (16.26mm) | 0.755" (19.18mm) | 0.640" (16.26mm) | 0.615" (15.62mm) | - |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | 12-16 AWG | 14-18 AWG | 20-24 AWG | 14-18 AWG | 16-20 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - |
| Contact Material | Steel | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Nickel | - | Tin | Tin | - | - | - |
