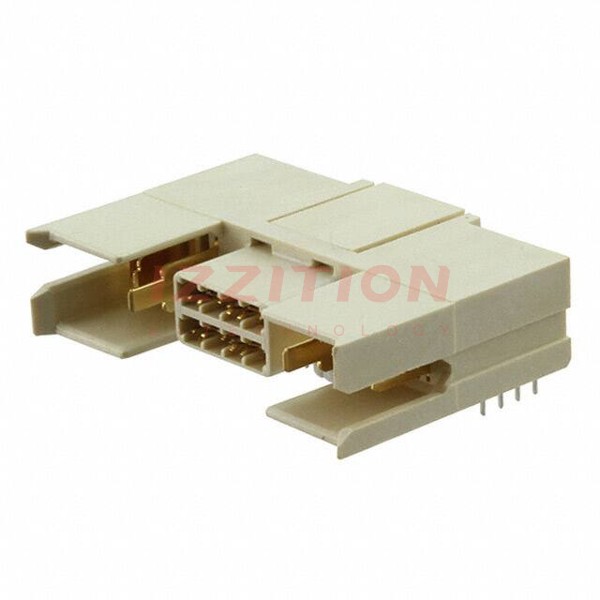

| Part Number | 6367551-2 | 6367555-2 | 6367551-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Usage | - | - | - |
| Connector Type | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets |
| Connector Style | High Speed | High Speed | High Speed |
| Number of Positions | 30 | 126 | 30 |
| Number of Positions Loaded | All | All | All |
| Pitch | - | - | - |
| Number of Rows | - | - | - |
| Number of Columns | - | - | - |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder |
| Contact Layout, Typical | 8 Differential Pairs, 8 Signal Ground, 6 Utility | 40 Differential Pairs, 40 Signal Ground, 6 Utility | 8 Differential Pairs, 8 Signal Ground, 6 Utility |
| Features | Board Lock, Mating Guide | Board Lock, Mating Guide | Board Lock, Mating Guide |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Natural | Natural | Natural |
