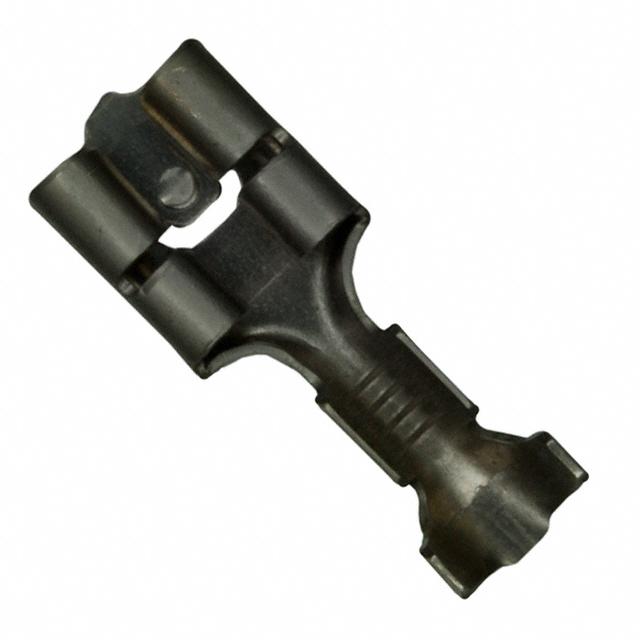

| Part Number | 63674-1 | 63677-1 | 63274-1 | 63604-1 | 63634-1 | 63654-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Angled - 90°, Flag | Standard | Standard |
| Gender | Female | Female | Male | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.380" (9.65mm) | 0.307" (7.80mm) | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | 0.753" (19.13mm) | 0.900" (22.86mm) | 0.625" (15.88mm) | - | 0.635" (16.13mm) | - |
| Termination | Crimp | Crimp | Screw, Rivet, Stud | Crimp | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 12-16 AWG | - | 12-18 AWG | 22-24 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Board, Chassis | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Steel | Brass | Brass | Steel | Brass | Brass |
| Contact Finish | Nickel | Tin | - | Nickel | Tin | - |
