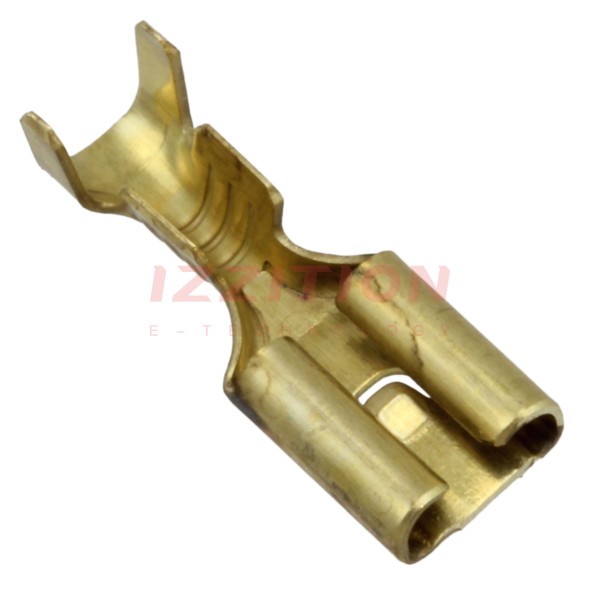

| Part Number | 63654-1 | 63954-1 | 63674-1 | 63655-1 | 63854-1 | 63604-1 | 63634-1 | 63650-1 | 63651-1 | 63652-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Angled - 90°, Flag | Standard | Standard | Angled - 90°, Flag | Angled - 90°, Flag |
| Gender | Female | Female | Female | Female | Female | Female | Female | Male | Female | Male |
| Tab Width | 0.187" (4.75mm) | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.305" (7.75mm) | 0.305" (7.75mm) | 0.293" (7.44mm) | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.312" (7.92mm) | 0.305" (7.75mm) | 0.150" (3.81mm) |
| Length - Overall | - | 0.635" (16.13mm) | 0.753" (19.13mm) | 0.755" (19.18mm) | 0.771" (19.58mm) | - | 0.635" (16.13mm) | 0.532" (13.51mm) | - | - |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Solder | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | 18-22 AWG | 14-18 AWG | 14-18 AWG | 14-18 AWG | 12-18 AWG | 22-24 AWG | - | 12-18 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Steel | Brass | Brass | Steel | Brass | Brass | Phosphor Bronze | Brass |
| Contact Finish | - | Tin | Nickel | Tin | - | Nickel | Tin | Tin | Tin | Tin |
