Please send RFQ , we will respond immediately.

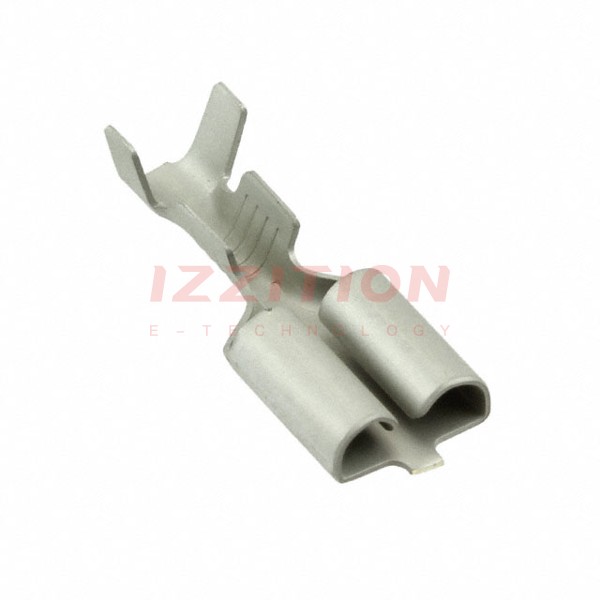

| Part Number | 63648-2 | 63608-2 | 63646-2 | 63647-2 | 63648-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Stacked | Angled - 90°, Flag | Standard |
| Gender | Female | Female | Female and Male | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) / 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.225" (5.72mm) | - | 0.305" (7.75mm) |
| Length - Overall | - | - | 0.615" (15.62mm) | - | - |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-20 AWG | 16-20 AWG | 16-20 AWG | 14-18 AWG | 14-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Phosphor Bronze | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | - |
