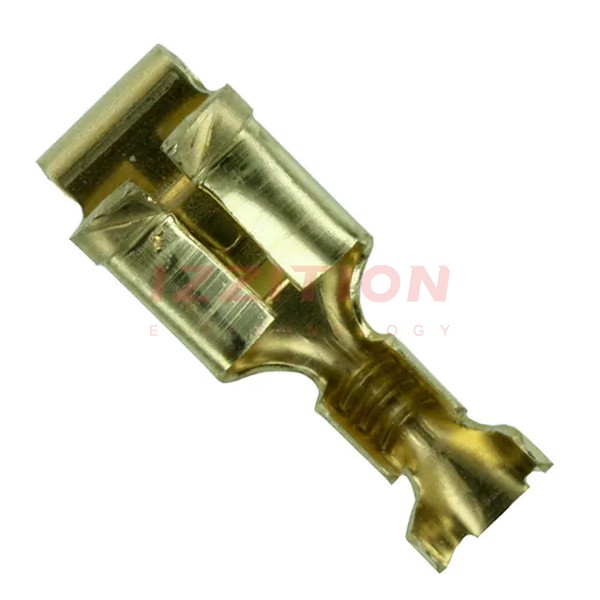

| Part Number | 63646-1 | 63646-2 | 63696-1 | 63648-1 | 63647-1 | 63946-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Terminal Type | Stacked | Stacked | Angled - 90°, Flag | Standard | Angled - 90°, Flag | Standard |
| Gender | Female and Male | Female and Male | Female | Female | Female | Male |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) / 0.020" (0.51mm) | 0.032" (0.81mm) / 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.225" (5.72mm) | 0.225" (5.72mm) | 0.250" (6.35mm) | 0.305" (7.75mm) | - | 0.250" (6.35mm) |
| Length - Overall | 0.615" (15.62mm) | 0.615" (15.62mm) | - | - | - | 0.605" (15.37mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Screw, Rivet, Stud |
| Wire Gauge | 16-20 AWG | 16-20 AWG | 16-20 AWG | 14-20 AWG | 14-18 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Board, Chassis |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Steel | Brass | Brass | Brass |
| Contact Finish | - | Tin | Nickel | - | - | Tin |
