Please send RFQ , we will respond immediately.

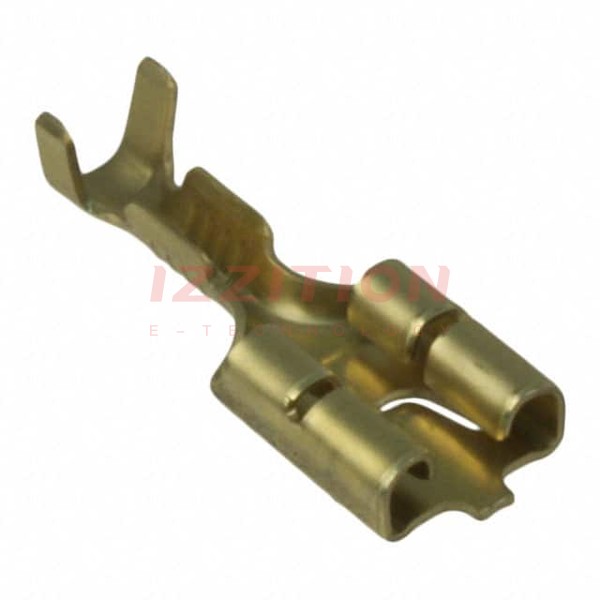

| Part Number | 63609-1 | 63609-2 | 63809-1 | 63009-1 | 63603-1 | 63604-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Angled - 90°, Flag | Standard | Angled - 90°, Flag |
| Gender | Female | Female | Female | Female | Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.305" (7.75mm) | - | 0.240" (6.10mm) | - | 0.305" (7.75mm) |
| Length - Overall | - | - | 0.886" (22.50mm) | - | 0.487" (12.37mm) | - |
| Termination | Crimp | Crimp | Crimp | Crimp | Solder | Crimp |
| Wire Gauge | 18-22 AWG | 18-22 AWG | 14-18 AWG | 14-18 AWG | - | 12-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Through Hole | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Steel |
| Contact Finish | - | Tin | Tin | - | Tin | Nickel |
