Please send RFQ , we will respond immediately.

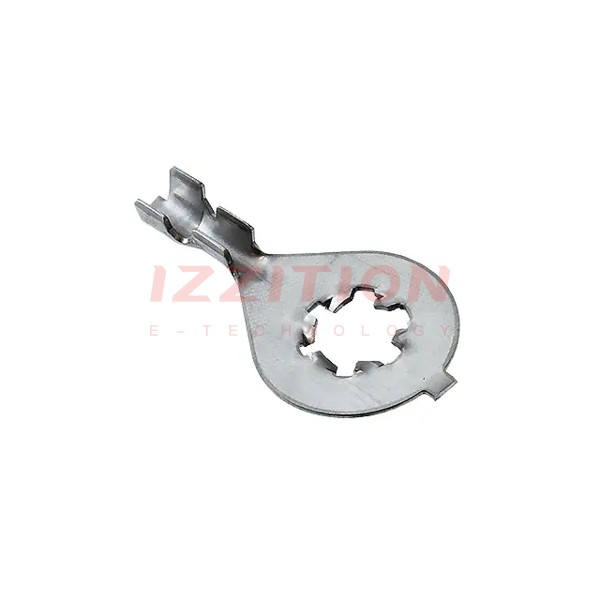

| Part Number | 63602-1 | 63612-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Stud Retaining | Oval |
| Stud/Tab Size | - | - |
| Thickness | 0.025" (0.64mm) | 0.025" (0.64mm) |
| Width - Outer Edges | 0.687" (17.45mm) | 0.420" (10.67mm) |
| Length - Overall | 1.245" (31.62mm) | 0.872" (22.15mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Features | Inner Teeth | - |
| Color | - | - |
| Contact Material | Steel | Brass |
| Contact Finish | - | Tin |
