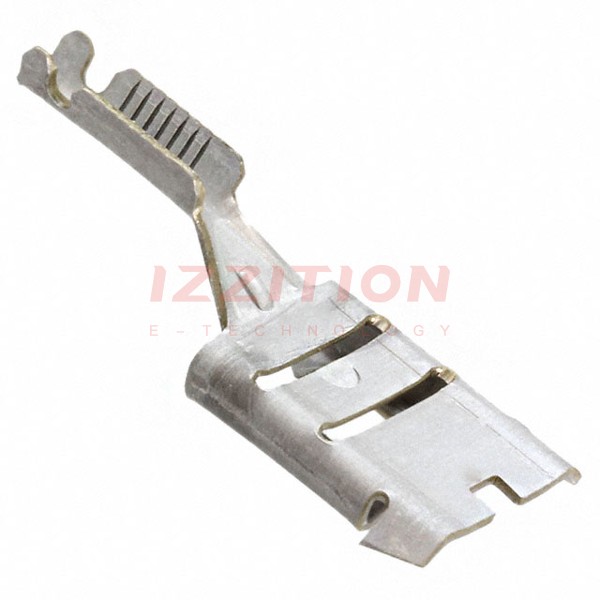

| Part Number | 63481-1 | 63483-1 | 63481-2 | 63480-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Stator | Standard | Stator | Stator |
| Gender | Female | Male | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.312" (7.92mm) | 0.305" (7.75mm) | 0.305" (7.75mm) |
| Length - Overall | 0.770" (19.56mm) | 1.010" (25.65mm) | 0.770" (19.56mm) | 0.770" (19.56mm) |
| Termination | Crimp, Reversed | Crimp | Crimp, Reversed | Crimp, Reversed |
| Wire Gauge | 15-21 AWG | 200-566 CMA | 15-21 AWG | 22-27 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin |
