Please send RFQ , we will respond immediately.

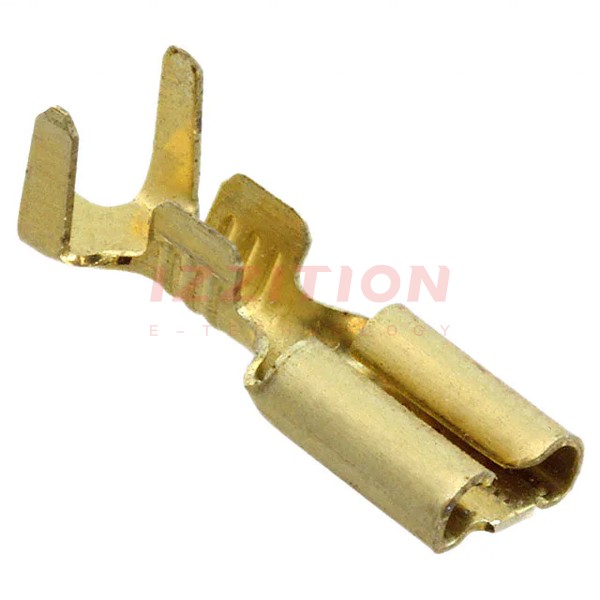

| Part Number | 63470-1 | 63475-1 | 63477-1 | 63480-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Stator |
| Gender | Female | Female | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.305" (7.75mm) |
| Length - Overall | 0.595" (15.11mm) | - | - | 0.770" (19.56mm) |
| Termination | Crimp | Crimp | Crimp | Crimp, Reversed |
| Wire Gauge | 16-18 AWG | 16-20 AWG | 16-20 AWG | 22-27 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | - | - | - | Tin |
