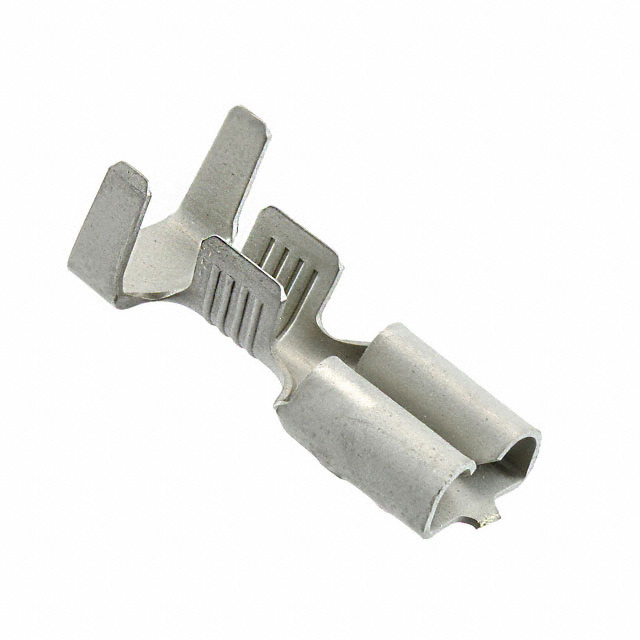

| Part Number | 63467-1 | 63477-1 | 63497-1 | 63067-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Male | Male |
| Tab Width | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.060" (1.52mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.455" (11.56mm) | 0.312" (7.92mm) |
| Length - Overall | 0.750" (19.05mm) | - | 0.740" (18.80mm) | 0.575" (14.61mm) |
| Termination | Crimp | Crimp | Crimp | Solder |
| Wire Gauge | 10-14 AWG | 16-20 AWG | 19-23 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | - | Tin | Tin |
