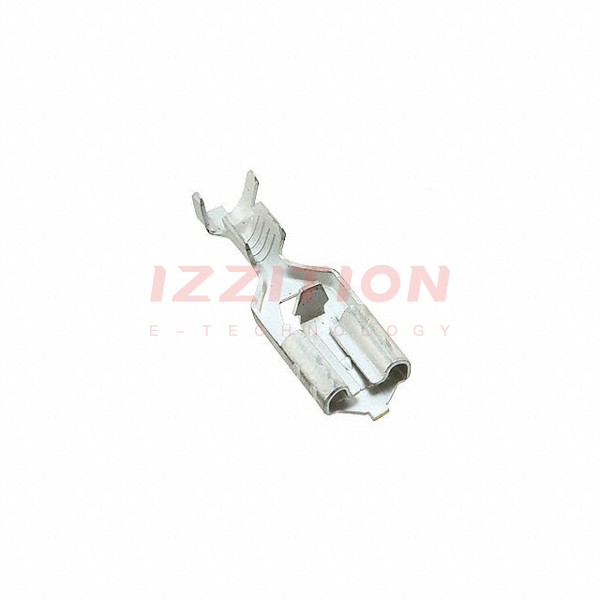

| Part Number | 63442-1 | 63445-1 | 63242-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete |
| Terminal Type | Standard | Angled - 90°, Flag | Stacked |
| Gender | Female | Female | Female and Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.018" (0.46mm) / 0.020" (0.51mm) |
| Tab Length | - | 0.305" (7.75mm) | 0.250" (6.35mm) |
| Length - Overall | 0.886" (22.50mm) | - | 0.600" (15.24mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 12-18 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | - | - |
