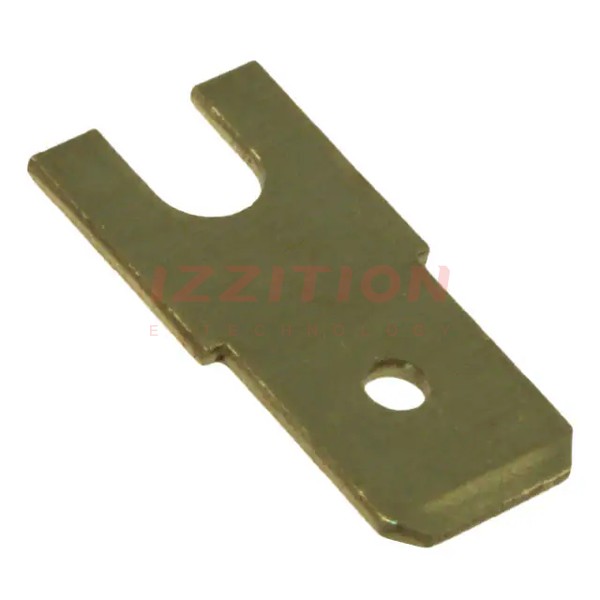

| Part Number | 63274-1 | 63674-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Gender | Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.307" (7.80mm) | 0.305" (7.75mm) |
| Length - Overall | 0.625" (15.88mm) | 0.753" (19.13mm) |
| Termination | Screw, Rivet, Stud | Crimp |
| Wire Gauge | - | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Mounting Type | Board, Chassis | Free Hanging (In-Line) |
| Features | - | - |
| Color | - | - |
| Contact Material | Brass | Steel |
| Contact Finish | - | Nickel |
