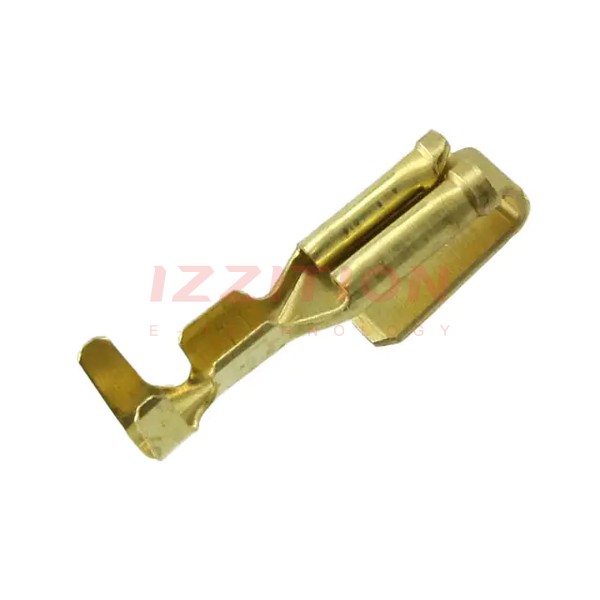

| Part Number | 63242-1 | 63442-1 | 63232-1 | 63241-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active |
| Terminal Type | Stacked | Standard | Standard | Standard |
| Gender | Female and Male | Female | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.018" (0.46mm) / 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | 0.250" (6.35mm) | - | - | 0.250" (6.35mm) |
| Length - Overall | 0.600" (15.24mm) | 0.886" (22.50mm) | 0.755" (19.18mm) | 0.550" (13.97mm) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 14-18 AWG | 16-20 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | - | Tin | Tin | Tin |
