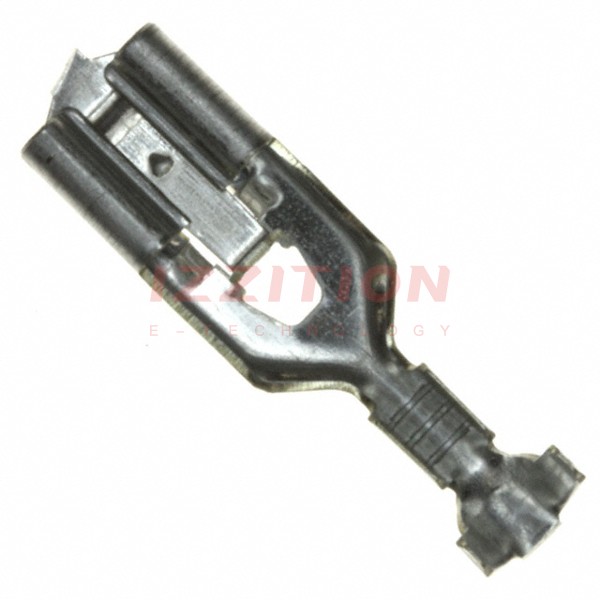

| Part Number | 63196-2 | 63596-2 | 63196-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard |
| Gender | Female | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.270" (6.86mm) | 0.250" (6.35mm) | 0.270" (6.86mm) |
| Length - Overall | 0.755" (19.18mm) | 0.640" (16.26mm) | 0.755" (19.18mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 20-24 AWG | 14-18 AWG | 20-24 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin |
