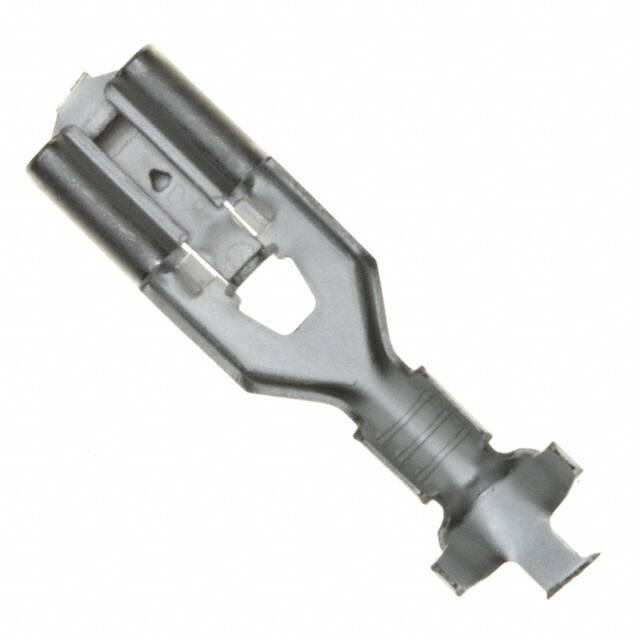

| Part Number | 63195-1 | 63196-1 | 63165-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Standard | Angled - 15° |
| Gender | Female | Female | Male |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.270" (6.86mm) | 0.270" (6.86mm) | - |
| Length - Overall | 0.755" (19.18mm) | 0.755" (19.18mm) | - |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | 20-24 AWG | 19-23 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin |
