Please send RFQ , we will respond immediately.

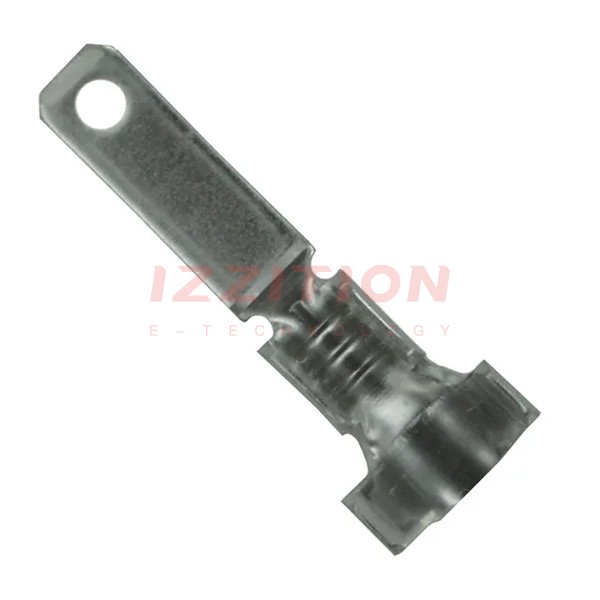

| Part Number | 63138-1 | 63538-1 | 63038-1 | 63137-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Angled - 90°, Flag | Flat Blade | Angled - 90°, Flag |
| Gender | Male | Female | Male | Female |
| Tab Width | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.033" (0.84mm) | 0.032" (0.81mm) |
| Tab Length | 0.330" (8.38mm) | 0.240" (6.10mm) | - | - |
| Length - Overall | 0.625" (15.88mm) | - | 0.715" (18.16mm) | - |
| Termination | Crimp | Crimp | Screw, Rivet, Stud | Crimp |
| Wire Gauge | 18-22 AWG | 14-18 AWG | - | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Board, Chassis | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Phosphor Bronze |
| Contact Finish | Tin | - | Tin | Tin |
