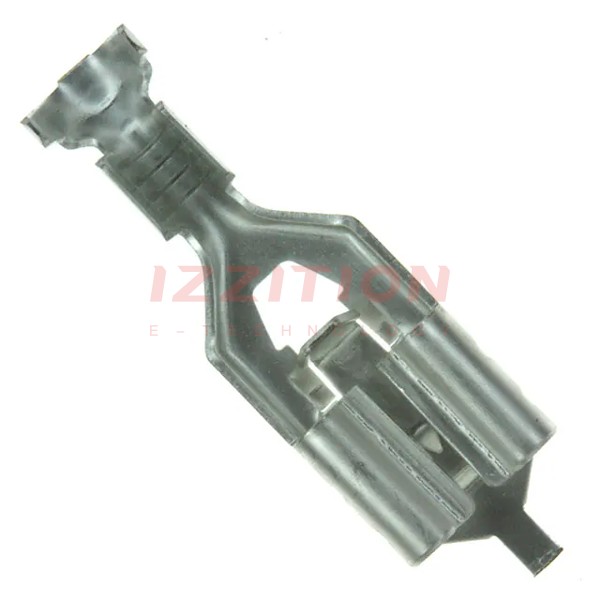

| Part Number | 63097-1 | 63097-2 | 63497-1 | 63067-1 | 63092-1 | 63093-1 | 63096-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Standard | Angled - 90°, Flag |
| Gender | Female | Female | Male | Male | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.060" (1.52mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.255" (6.48mm) | 0.255" (6.48mm) | 0.455" (11.56mm) | 0.312" (7.92mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.240" (6.10mm) |
| Length - Overall | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.740" (18.80mm) | 0.575" (14.61mm) | 0.635" (16.13mm) | 0.635" (16.13mm) | - |
| Termination | Crimp | Crimp | Crimp | Solder | Crimp | Crimp | Crimp |
| Wire Gauge | 14-18 AWG | 14-18 AWG | 19-23 AWG | - | 14-18 AWG | 14-18 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Features | - | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | - | Tin | Tin | Tin | Tin | - |
