Please send RFQ , we will respond immediately.

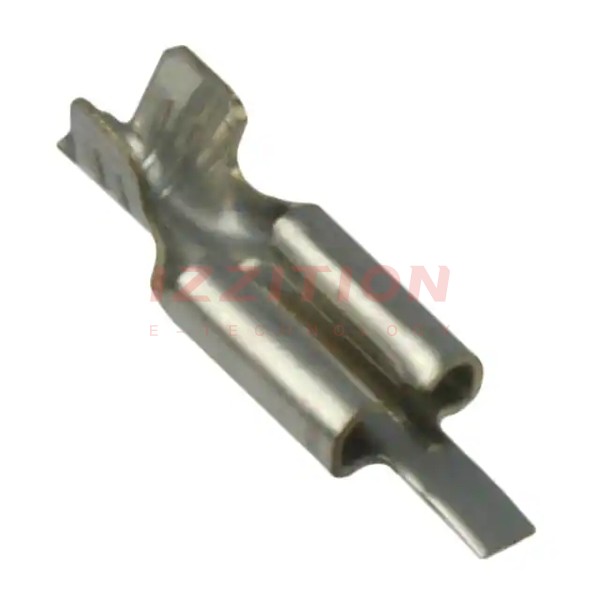

| Part Number | 62850-1 | 62852-1 | 62850-2 | 62650-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Male |
| Tab Width | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.200" (5.08mm) | 0.250" (6.35mm) | 0.200" (5.08mm) | - |
| Length - Overall | 0.380" (9.65mm) | 0.475" (12.07mm) | 0.380" (9.65mm) | 0.487" (12.37mm) |
| Termination | Crimp | Crimp | Crimp | Solder |
| Wire Gauge | 18-20 AWG | 14-18 AWG | 18-20 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin |
