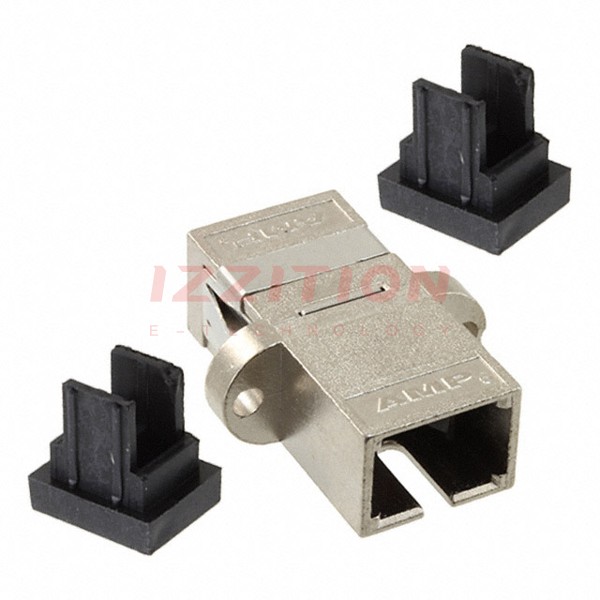

| Part Number | 6278348-1 | 6278349-1 | 6278348-7 | 6278348-2 | 6278348-3 | 6278348-4 | 6278348-5 | 6278348-6 | 6278348-8 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Active | Active | Obsolete | Active | Active |
| Type | Coupler | Adapter | Coupler | Coupler | Coupler | Coupler | Coupler | Coupler | Coupler |
| Convert From (Adapter End) | SC Receptacle | SC Receptacle | SC Receptacle | SC Receptacle | SC Receptacle | SC Receptacle | SC Receptacle | SC Receptacle | SC Receptacle |
| Convert To (Adapter End) | SC Receptacle | FC Receptacle | SC Receptacle | SC Receptacle | SC Receptacle | SC Receptacle | SC Receptacle | SC Receptacle | SC Receptacle |
| Simplex/Duplex | Simplex | Simplex | Simplex | Simplex | Simplex | Simplex | Simplex | Simplex | Simplex |
| Mode | Singlemode/Multimode | Singlemode/Multimode | Singlemode/Multimode | Singlemode/Multimode | Singlemode/Multimode | Singlemode/Multimode | Singlemode/Multimode | Singlemode/Multimode | Singlemode/Multimode |
| Mounting Type | Panel Mount, Flange (2 Hole) | Panel Mount, Flange; Snap-In | Panel Mount, Flange (2 Hole) | Panel Mount, Flange (2 Hole) | Panel Mount, Flange (2 Hole) | Panel Mount, Flange (2 Hole) | Panel Mount, Flange (2 Hole) | Panel Mount, Flange (2 Hole) | Panel Mount, Flange (2 Hole) |
| Housing Material | Zinc Die Cast | Zinc Die Cast | Zinc Die Cast | Zinc Die Cast | Zinc Die Cast | Zinc Die Cast | Zinc Die Cast | Zinc Die Cast | Zinc Die Cast |
| Ferrule Material | Metal | Metal | Ceramic | Metal | Ceramic | Ceramic | Metal | Metal | Ceramic |
| Features | Dust Cap | Dust Cap | Dust Cap | Dust Cap | Dust Cap | Dust Cap | Dust Cap | Dust Cap | Dust Cap |
| Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
