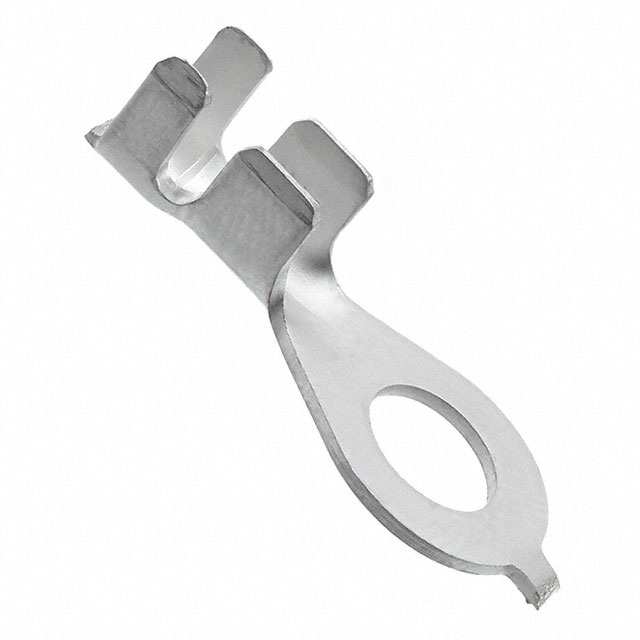

| Part Number | 626035-2 | 696035-2 | 626036-2 | 626038-2 | 626037-2 | 626030-2 | 626033-2 | 626034-2 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular, 2 Holes | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | - | 10 Stud | - | - | - | - | - | - |
| Thickness | 0.032" (0.81mm) | 0.057" (1.45mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.024" (0.61mm) | 0.024" (0.61mm) | 0.024" (0.61mm) |
| Width - Outer Edges | 0.315" (8.00mm) | 0.755" (19.18mm) | 0.374" (9.50mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.374" (9.50mm) | 0.472" (12.00mm) |
| Length - Overall | 0.780" (19.81mm) | - | 0.748" (19.00mm) | 0.996" (25.30mm) | 0.996" (25.30mm) | 1.012" (25.70mm) | 0.780" (19.81mm) | 1.016" (25.80mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp, Flag | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-11 AWG | 6 AWG | 10-11 AWG | 10-11 AWG | 10-11 AWG | 15-20 AWG | 13-17 AWG | 13-17 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | - | Brazed Seam, Serrated Termination | - | - | - | - | - | - |
| Color | - | - | - | - | - | - | - | - |
| Contact Material | Brass | Copper | Brass | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
