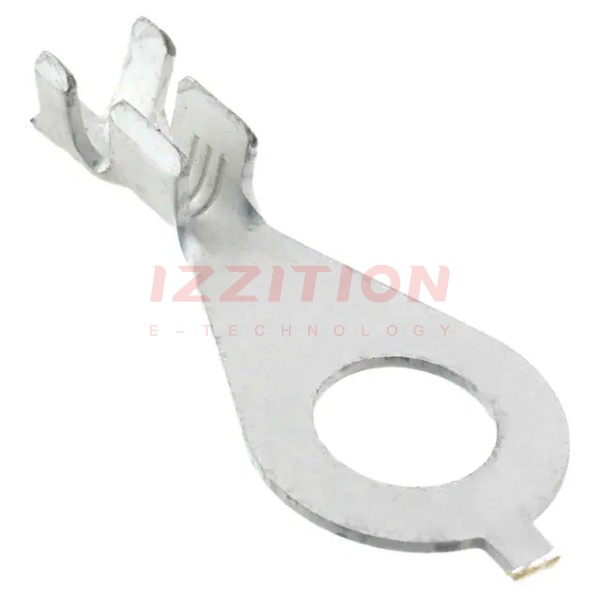

| Part Number | 626034-1 | 626034-2 | 626037-1 | 626030-1 | 626033-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | - | - | - | - | - |
| Thickness | 0.024" (0.61mm) | 0.024" (0.61mm) | 0.032" (0.81mm) | 0.024" (0.61mm) | 0.024" (0.61mm) |
| Width - Outer Edges | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | - | 0.374" (9.50mm) |
| Length - Overall | 1.016" (25.80mm) | 1.016" (25.80mm) | 0.996" (25.30mm) | 1.016" (25.80mm) | 0.780" (19.81mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 13-17 AWG | 13-17 AWG | 10-11 AWG | 15-20 AWG | 13-17 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | - | Tin | - | - | - |
