Please send RFQ , we will respond immediately.

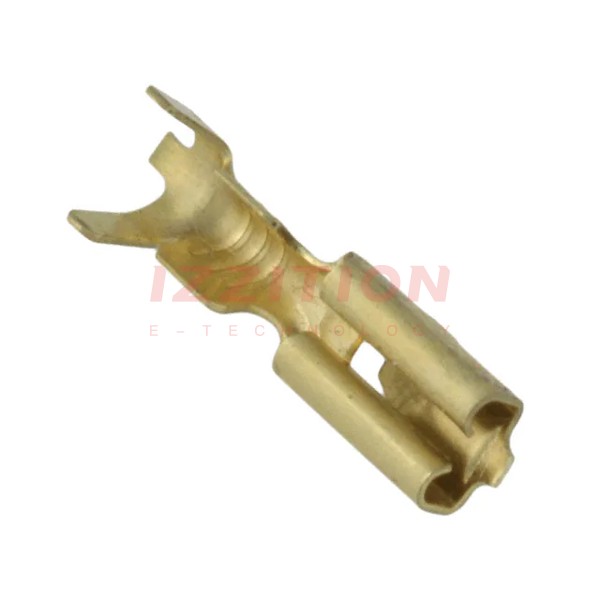

| Part Number | 62572-1 | 62576-1 | 62572-6 | 62572-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Angled - 45° | Standard | Standard |
| Gender | Female | Male | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.187" (4.75mm) | 0.110" (2.79mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | - | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | 0.550" (13.97mm) | - | 0.550" (13.97mm) | 0.550" (13.97mm) |
| Termination | Crimp | Screw, Rivet, Stud | Crimp | Crimp |
| Wire Gauge | 16-20 AWG | - | 16-20 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Board, Chassis | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Phosphor Bronze |
| Contact Finish | - | - | Tin | - |
