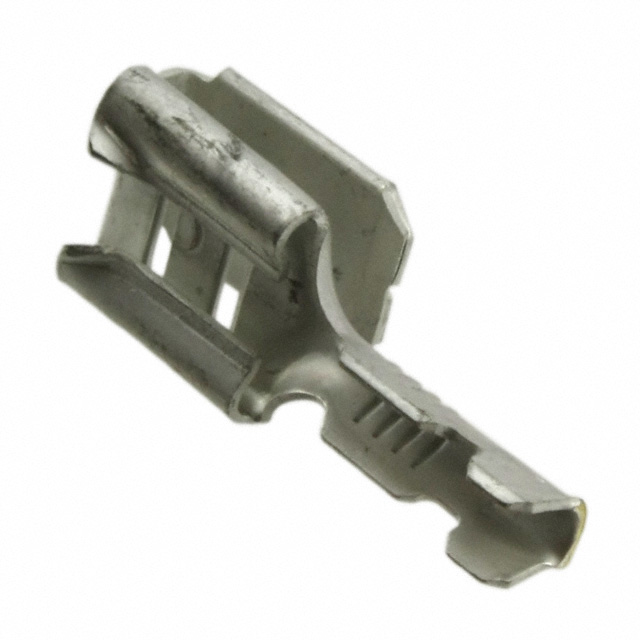

| Part Number | 62274-1 | 62276-1 | 62474-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Stacked | Stacked | Standard |
| Gender | Female and Male | Female and Male | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | - | 0.305" (7.75mm) | 0.250" (6.35mm) |
| Length - Overall | 0.810" (20.57mm) | 0.590" (14.99mm) | 0.475" (12.07mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 14-18 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin |
