Please send RFQ , we will respond immediately.

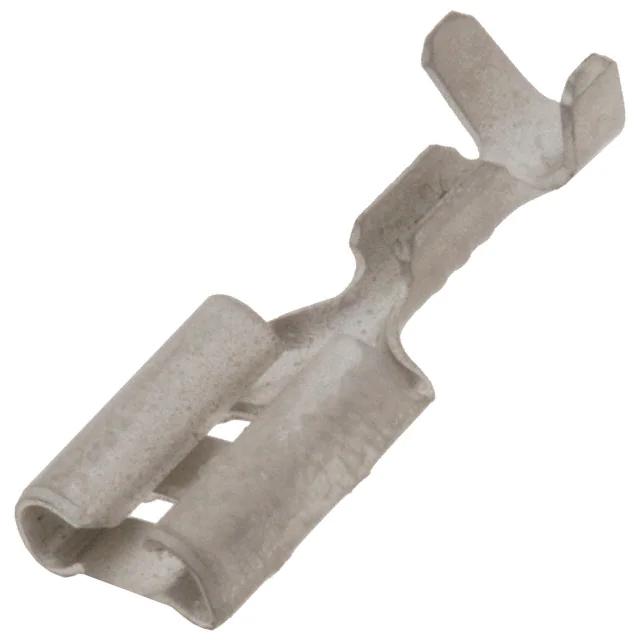

| Part Number | 62138-1 | 62139-1 | 62138-2 | 62137-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Stacked | Standard | Standard |
| Gender | Female | Female and Male | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | 0.250" (6.35mm) | 0.225" (5.72mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | 0.585" (14.86mm) | 0.615" (15.62mm) | 0.585" (14.86mm) | 0.585" (14.86mm) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 20-24 AWG | 16-20 AWG | 20-24 AWG | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | - | - |
