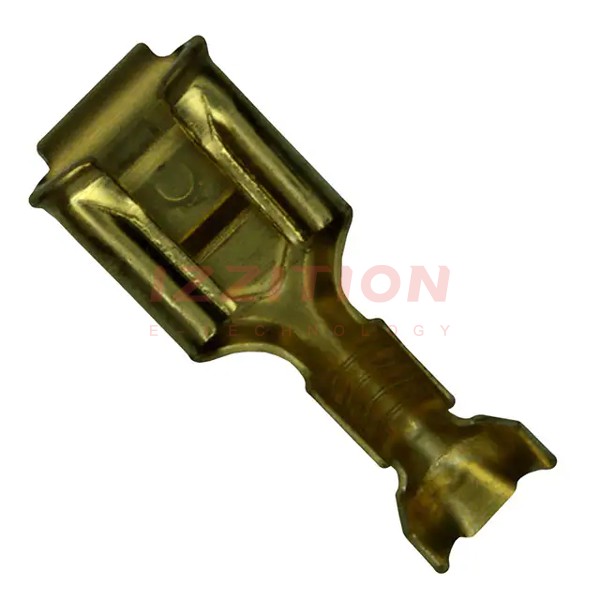

| Part Number | 62109-1 | 62109-2 | 62409-1 | 62139-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Stacked | Stacked | Standard | Stacked |
| Gender | Female and Male | Female and Male | Male | Female and Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.305" (7.75mm) | 0.305" (7.75mm) | 0.312" (7.92mm) | 0.225" (5.72mm) |
| Length - Overall | 0.780" (19.81mm) | 0.780" (19.81mm) | 0.622" (15.80mm) | 0.615" (15.62mm) |
| Termination | Crimp | Crimp | Solder | Crimp |
| Wire Gauge | 14-18 AWG | 14-18 AWG | - | 16-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | - | Tin | Tin | Tin |
