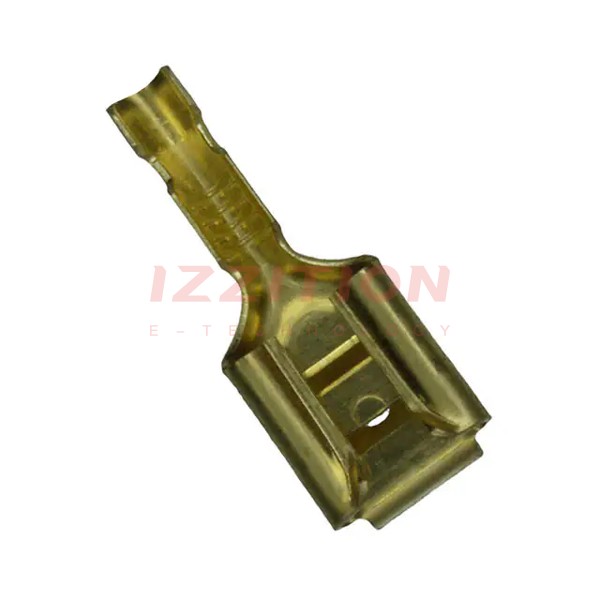

| Part Number | 61988-1 | 61988-2 | 61988-3 | 61188-1 | 61968-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Stacked | Stacked | Stacked | Angled - 90°, Flag | Standard |
| Gender | Female and Male | Female and Male | Female and Male | Female | Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.305" (7.75mm) | 0.305" (7.75mm) | 0.305" (7.75mm) | - | 0.280" (7.11mm) |
| Length - Overall | 0.770" (19.56mm) | 0.770" (19.56mm) | 0.770" (19.56mm) | - | 0.485" (12.32mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Solder |
| Wire Gauge | 18-22 AWG | 18-22 AWG | 18-22 AWG | 12-16 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Through Hole |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Phosphor Bronze | Brass |
| Contact Finish | - | Tin | Tin | Tin | Tin |
