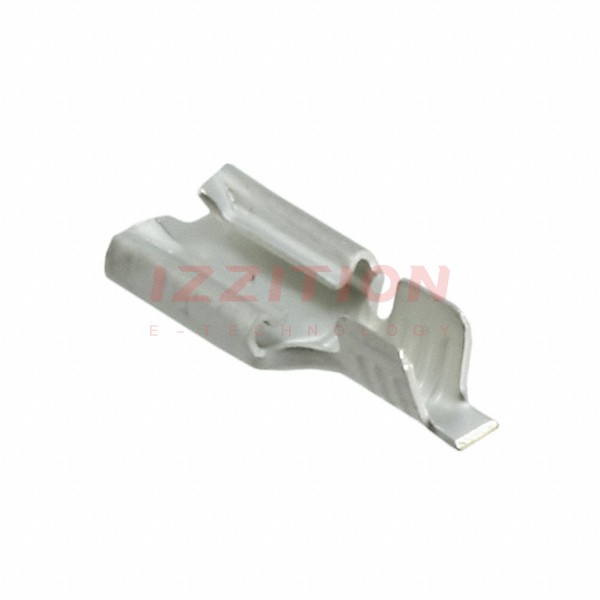

| Part Number | 61969-1 | 61919-1 | 61960-1 | 61968-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Angled - 45° | Standard |
| Gender | Female | Female | Male | Male |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | 0.250" (6.35mm) | 0.250" (6.35mm) | - | 0.280" (7.11mm) |
| Length - Overall | 0.475" (12.07mm) | 0.585" (14.86mm) | - | 0.485" (12.32mm) |
| Termination | Crimp | Crimp | Screw, Rivet, Stud | Solder |
| Wire Gauge | 16-20 AWG | 16-20 AWG | - | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Board, Chassis | Through Hole |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Steel | Brass |
| Contact Finish | Tin | - | Nickel | Tin |
