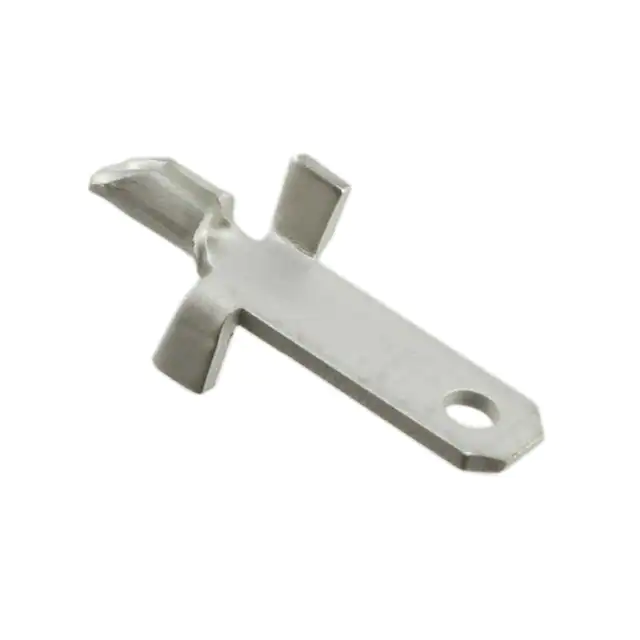

| Part Number | 61968-1 | 61988-1 | 61969-1 | 61368-1 | 61960-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Stacked | Standard | Standard | Angled - 45° |
| Gender | Male | Female and Male | Female | Female | Male |
| Tab Width | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.280" (7.11mm) | 0.305" (7.75mm) | 0.250" (6.35mm) | 0.305" (7.75mm) | - |
| Length - Overall | 0.485" (12.32mm) | 0.770" (19.56mm) | 0.475" (12.07mm) | 0.755" (19.18mm) | - |
| Termination | Solder | Crimp | Crimp | Crimp | Screw, Rivet, Stud |
| Wire Gauge | - | 18-22 AWG | 16-20 AWG | 20-24 AWG | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Board, Chassis |
| Features | - | - | - | - | - |
| Color | - | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass | Steel |
| Contact Finish | Tin | - | Tin | Tin | Nickel |
